The MARINE X series was designed with entry-level aquarium enthusiasts in mind.
Each MARINE X series model includes the aquarium, laminated plywood cabinet, sump and plumbing kit.
- Starphire Ultra-Clear Glass
- Ready to Assemble Plumbing
- All Glass Sump System
- Includes Filter Socks
- Laminated Plywood Cabinetry
Waterbox Aquariums® has redesigned our popular MARINE series from the ground up and introduced the MARINE X. New features include glass overflow with removable weir teeth, dual returns and sump filtration system. The all new MARINE X is packed full of features any reefer will love.
More Flow, Less Maintenance.
The MARINE X 60.2, 90.3 and 110.4 models come standard with dual returns and our newly designed removable weir teeth system, which allows for easy maintenance and cleaning.
MARINE X
| PRODUCT MODEL | MARINE X35.1 | MARINE X60.2 | MARINE X90.3 | MARINE X110.4 | |
|---|---|---|---|---|---|
| Display Tank |
Dimensions | 450 x 450 x 450mm | 600 x 500 x 500mm | 900 x 500 x 550mm | 1200 x 500 x 550mm |
| 17.7″×17.7″×17.7″ | 23.6″×19.7″×19.7″ | 35.4″×19.7″×21.7″ | 47.2″×19.7″×21.7″ | ||
| Glass Thickness | 8mm (5/16″) | 10mm (2/5″) | 12mm (1/2″) | 12mm (1/2″) | |
| Water Height | 435mm/17.1″ | 485mm/19.1″ | 535mm/21.1″ | 535mm/21.1″ | |
| Aquarium Volume | 83 L/22 gals | 136 L/36 gals | 224 L/59.3 gals | 301 L/79.6 gals | |
| Glass Material | Ultra-clear glass | ||||
| Transmittance | 91% | ||||

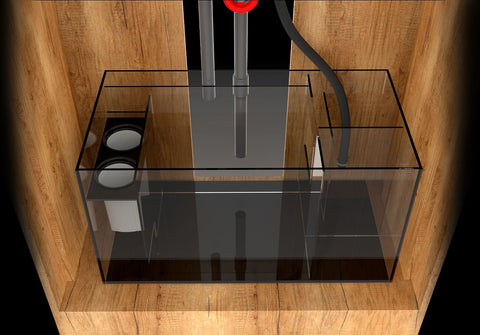

| Sump | Sump Dimensions | 380 x 320 x 380mm | 520 x 380 x 380mm | 720 x 380 x 380mm | 720 x 380 x 380mm |
| 15″×12.6″×15″ | 20.5″×15″×15″ | 28.3″×15″×15″ | 28.3″×15″×15″ | ||
| Sump Volume | 42 L/11.2 gals | 70 L/18.5 gals | 97 L/25.7 gals | 97 L/25.7 gals | |
| Glass Thickness | 6mm (1/4″) | 6mm (1/4″) | 6mm (1/4″) | 6mm (1/4″) | |
| RO Reservoir | 7.9 L/2.1 gals | 7.6 L/2.0 gals | 10.7 L/2.8 gals | 10.7 L/2.8 gals | |
| Skimmer Chamber | 308 x 198mm | 253 x 318mm | 393 x 313mm | 393 x 313mm | |
| 12.1″×7.8″ | 10″×12.5″ | 15.5″×12.3″ | 15.5″×12.3″ | ||
| Pump Chamber | 176 x 120mm | 140 x 220mm | 218 x 150mm | 218 x 150mm | |
| 6.9″×4.7″ | 5.5″×8.7″ | 8.6″×5.9″ | 8.6″×5.9″ | ||
| Plumbing | Main Drain | DN20 | DN20 | DN25 | DN25 |
| Emergency Overflow | DN20 | DN20 | DN25 | DN25 | |
| Pump Return | DN15 | DN20 | DN20 | DN20 | |
| Nozzles | DN15 x 1 | DN15 x 2 | DN15 x 2 | DN15 x 2 | |
| Filter Socks | 70mm/2.75″ x 2 | 105mm/4″ x 1 | 105mm/4″ x 2 | 105mm/4″ x 2 | |
| Cabinet | Cabinet Model | PW 1818 | PW 2420 | PW 3620 | PW 4820 |
| Dimensions | 450 x 450 x 900mm | 600 x 500 x 900mm | 900 x 500 x 900mm | 1200 x 500 x 900mm | |
| 17.7″×17.7″×35.4″ | 23.7″×19.7″×35.4″ | 35.4″×19.7″×35.4″ | 47.2″×19.7″×35.4″ | ||
| Material | 18mm solid plywood | ||||
| Color | W-White, B-Black, O-Oak | ||||
| System | Height with Cabinet | 1350mm/53.1″ | 1400mm/55.1″ | 1450mm/57.1″ | 1450mm/57.1″ |
| Total Volume | 126 L/33.2 gals | 206 L/54.5 gals | 322 L/85.0 gals | 399 L/105.3 gals | |
| Aquarium & Sump Weight | 87.1lbs (39.5kg) | 106.9lbs (48.5kg) | 125.7lbs (57kg) | 227.1lbs (103kg) | |
